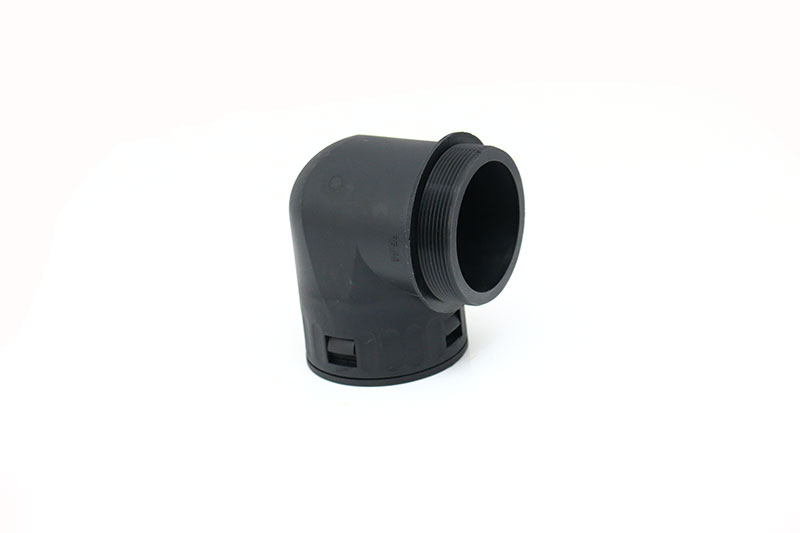

大同90°波紋管帶鎖緊防爆固定防水塑料電纜接頭
分類：大同塑料電纜防水接頭
型號：RTF
品牌：ATR
產地：寧波市奉化區
廠家：奉化市安泰爾電器有限公司
產品詳情
產品概述
90°帶鎖緊防爆固定防水塑料電纜接頭采用夾緊爪的設計，可以使夾緊浪管的抗拉力增強，快速拔插安裝，提供工作效率；本產品的靜態溫度-40℃至100℃，可瞬間加熱到120℃；動態溫度下，比靜態的溫度要上下下降20℃，瞬間性最多加熱到100℃；使用尼龍PA66材質制作而成，也可定制UL94V-0/2，但有起訂量限制；顏色選購有黑色、灰白色兩張常見色。
技術參數
90°波紋管快速接頭
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑(mm) | 螺紋長度(mm) |
| AD10.0 | RTF-M10-10.0 | M10*1.5 | 10.0 | 10.0 |
| RTF-M12-10.0 | M12*1.5 | 12.0 | 10.0 | |
| AD13.0 | RTF-M16-13.0 | M16*1.5 | 16.0 | 10.0 |
| RTF-M18-13.0 | M18*1.5 | 18.0 | 10.0 | |
| RTF-M20-13.0 | M20*1.5 | 20.0 | 10.0 | |
| AD15.8 | RTF-M16-15.8 | M16*1.5 | 16.0 | 10.0 |
| RTF-M18-15.8 | M18*1.5 | 18.0 | 10.0 | |
| RTF-M20-15.8 | M20*1.5 | 20.0 | 10.0 | |
| AD18.5 | RTF-M20-18.5 | M20*1.5 | 20.0 | 11.5 |
| AD21.2 | RTF-M20-21.2 | M20*1.5 | 20.0 | 13.0 |
| RTF-M24-21.2 | M24*1.5 | 24.0 | 13.0 | |
| RTF-M25-21.2 | M25*1.5 | 25.0 | 13.0 | |
| AD25.0 | RTF-M25-25.0 | M25*1.5 | 25.0 | 13.0 |
| AD28.5 | RTF-M25-28.5 | M25*1.5 | 25.0 | 13.0 |
| RTF-M27-28.5 | M27*1.5 | 27.0 | 13.0 | |
| RTF-M30-28.5 | M30*1.5 | 30.0 | 13.0 | |
| AD34.5 | RTF-M32-34.5 | M32*1.5 | 32.0 | 14.5 |
| RTF-M36-34.5 | M36*1.5 | 36.0 | 14.5 | |
| RTF-M40-34.5 | M40*1.5 | 40.0 | 14.5 | |
| AD42.5 | RTF-M40-42.5 | M40*1.5 | 40.0 | 14.5 |
| RTF-M48-42.5 | M48*1.5 | 48.0 | 14.5 | |
| AD54.5 | RTF-M50-54.5 | M50*1.5 | 50.0 | 16.0 |
| RTF-M63-54.5 | M63*1.5 | 63.0 | 16.0 |
90°波紋管快速接頭
| 適配軟管 | 編號 | 螺牙規格 | 螺紋外徑(mm) | 螺紋長度(mm) |
| AD10.0 | RTF-PG7-10.0 | PG7 | 12.5 | 10.0 |
| AD13.0 | RTF-PG9-13.0 | PG9 | 15.2 | 10.0 |
| AD15.8 | RTF-PG11-15.8 | PG11 | 18.6 | 10.0 |
| AD18.5 | RTF-PG13.5-18.5 | PG13.5 | 20.4 | 11.0 |
| AD21.2 | RTF-PG16-21.2 | PG16 | 22.5 | 13.0 |
| AD25.0 | RTF-PG21-25 | PG21 | 28.3 | 13.0 |
| AD28.5 | RTF-PG21-28.5 | PG21 | 28.3 | 13.0 |
| AD34.5 | RTF-PG29-34.5 | PG29 | 37.0 | 14.5 |
| AD42.5 | RTF-PG36-42.5 | PG36 | 47.0 | 14.5 |
| AD54.5 | RTF-PG42-54.5 | PG42 | 54.0 | 16.0 |
| AD54.5 | RTF-PG48-54.5 | PG48 | 59.3 | 16.0 |
| AD10.0 | RTF-G1/4-10.0 | G(PF)1/4 | 13.157 | 10.0 |
| AD13.0 | RTF-G3/8-13.0 | G(PF)3/8 | 16.662 | 10.0 |
| AD15.8 | RTF-G1/2-15.8 | G(PF)1/2 | 20.955 | 10.0 |
| AD18.5 | RTF-G1/2-18.5 | G(PF)1/2 | 20.995 | 11.0 |
| AD21.2 | RTF-G1/2-21.2 | G(PF)1/2 | 20.995 | 13.0 |
| AD25.0 | RTF-G3/4-25 | G(PF)3/4 | 26.441 | 13.0 |
| AD28.5 | RTF-G3/4-28.5 | G(PF)3/4 | 26.441 | 13.0 |
| AD34.5 | RTF-G1-34.5 | G(PF)1 | 33.2 | 14.5 |
| AD42.5 | RTF-G1 1/4-42.5 | G(PF)1 1/4 | 41.9 | 14.5 |
| AD54.5 | RTF-G1 1/2-54.5 | G(PF)1 1/2 | 48 | 16.0 |
| AD54.5 | RTF-G2-54.5 | G(PF)2 | 60 | 16.0 |
